How does the shuttle mechanism work on a 4x6 dual-color shuttle ink pad printing machine?

The shuttle mechanism on a 4x6 dual-color shuttle ink pad printing machine works by using a pneumatic drive to slide the printing substrate horizontally between two distinct color positions. The printing pads descend sequentially, picking up ink from separate wells and transferring it onto the moving substrate, ensuring precise color registration for multi-color designs on flat or irregular surfaces.

Core Solutions & Key Takeaways

• Pneumatic Lateral Movement: A pneumatic power system drives the shuttle mechanism, moving the fixture with high repeatability to align the substrate perfectly under each printing pad.
• Dual-Color Registration: By shifting the substrate instead of the heavy printing head, the machine maintains stable mechanical alignment, reducing registration errors during dual-color operations.
• Broad Material Application: This mechanism accommodates diverse materials including glass, plastic, hardware, and silicone across flat or irregular printing surfaces.
• Versatile Industry Scenarios: The dual-color shuttle setup is widely utilized in automotive interior buttons, stationery, 3C electronics, toy manufacturing, and cosmetic packaging.

Detailed Architectural and Principle Analysis

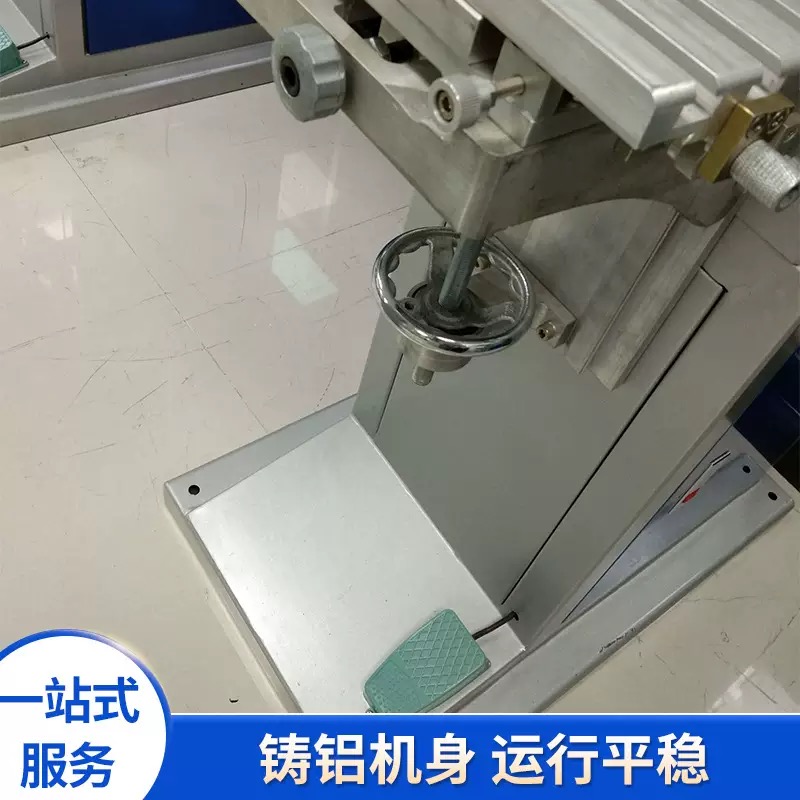

The core of the SCL-P2/S shuttle pad printing machine lies in its synchronized pneumatic movement. Operating on a 110V/220V power supply (50W), the pneumatic drive supplies consistent force to slide the shuttle table left and right. This linear translation is mechanical, restricted by physical limit sensors or hard stops to guarantee that the substrate stops at the exact coordinates under pad one and pad two.

During a standard cycle, the substrate is loaded onto the shuttle fixture. The shuttle moves to the first position, where the first silicone pad descends to transfer the first ink color. Once the pad retracts, the shuttle shifts laterally to the second position. The second pad then descends to apply the second color. This process allows a maximum printing area of 120x70mm with a printing material thickness range of up to 20cm.

Our practical application cases highlight the reliability of this mechanism. For instance, a hotel product distributor in Saudi Arabia utilizes this precise dual-color registration to customize upscale room decorations and tableware. By employing this shuttle system, they achieve flawless brand logo reproduction on varying material surfaces. The machine's physical safety and mechanical stability are backed by CNAS certifications (such as AZT260323020C-B0 and AZT260323019C-B0) for supporting materials, ensuring consistent performance in industrial environments.

Data and Solution Comparison

Frequently Asked Questions (FAQ)

Final Conclusion & Recommendations

The pneumatic shuttle mechanism on the SCL-P2/S 4x6 dual-color shuttle ink pad printing machine offers a highly reliable, cost-effective solution for multi-color registration on diverse substrates. By moving the workpiece rather than the printing heads, it simplifies mechanical complexity and ensures long-term operational stability. Standard units are dispatched swiftly, while customized non-standard printing setups are completed within a month under strict quality inspection protocols. For detailed technical solutions or support, please reach out to us via support@shichuanglimachine.com.
