What is the maximum printing thickness for a 3050/5070 Flatbed Screen Printing Machine?

The maximum printing thickness for the 3050/5070 Flatbed Screen Printing Machine is 120 mm. This thickness range allows the semi-automatic SCL-5070 flatbed printer to process various thick and rigid substrates, including plastics, hardware, wood boards, and multi-layer PCB boards, while delivering stable monochrome flat surface prints.

Core Solutions & Key Takeaways

• Substantial Clearance: A 120 mm substrate thickness limit accommodates tall, bulky, or irregular rigid objects that standard flatbed printers cannot handle.
• Optimized Work Area: Features a 700 x 500 mm workbench paired with a maximum printing area of 600 x 400 mm for medium-sized materials.
• Precision Calibration: The workbench supports horizontal and vertical micro-adjustments of ±10 mm to ensure perfect registration accuracy.
• Industrial Performance: Delivers printing speeds of up to 500 pieces per hour under semi-automatic operation, supported by a sturdy 280 kg frame.

Detailed Architectural/Principle Analysis

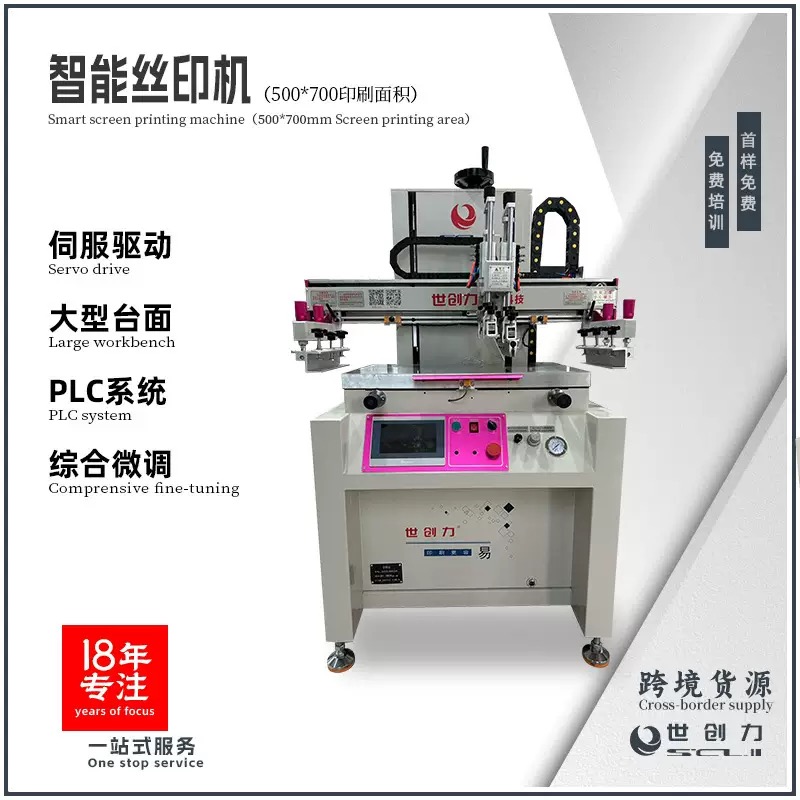

The SCL-5070 Flatbed Screen Printing Machine, engineered by Dongguan Shichuangli Zhihui Technology Co., Ltd., employs a robust mechanical lifting system designed to maintain structural rigidity during intensive production cycles. By offering a maximum substrate thickness of 120 mm, the equipment allows industrial manufacturers to print directly onto deep-draw plastics, metal enclosures, and thick wooden panels. The horizontal and vertical adjustment mechanism of ±10 mm enables operators to fine-tune alignment quickly between production batches, reducing machine downtime and improving overall yield.

In terms of screen compatibility, the system supports a maximum mesh frame size of 600 x 800 mm. This large frame allowance reduces tension loss near the printing borders, translating to sharp, uniform ink deposition. The semi-automatic operation relies on precise pneumatic or mechanical controls, which balance squeegee pressure across the entire 600 x 400 mm active printing area. Such control ensures that industrial parts meet strict cosmetic and physical durability standards, particularly in high-demand environments like automotive component marking and consumer electronics manufacturing.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

What materials are compatible with the SCL-5070 Flatbed Screen Printing Machine?

The machine is highly compatible with flat-surfaced plastics, PCB boards, metals, hardware parts, and wood boards. It is widely used for industrial labeling, packaging decoration, and component marking.

What is the typical lead time and shipping method for this printer?

Standard printing equipment is delivered within 7 working days. The equipment is packed in reinforced wooden boxes to protect against moisture and vibration, and can be shipped via sea, air, or land freight.

What kind of after-sales technical support is available?

The equipment comes with a two-year product warranty. Manufacturers receive one-on-one remote technical instruction for setup, operation, and lifetime maintenance support to ensure continuous production stability.

Final Conclusion & Recommendations

Choosing the SCL-5070 screen printer ensures that production lines handling thicker materials up to 120 mm remain efficient and highly accurate. The combination of a 280 kg vibration-dampening chassis and precise ±10 mm table adjustments makes it a reliable asset for both small-batch specialized printing and continuous industrial manufacturing. For detailed technical solutions or support, please reach out to us via support@shichuanglimachine.com.
